Product Application:

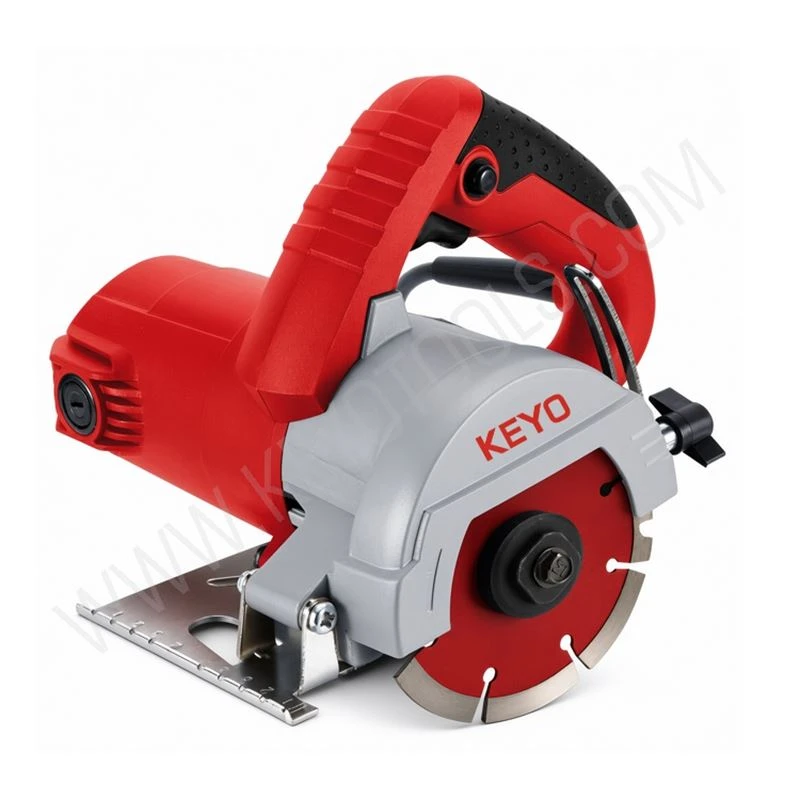

This high-power portable stone cutter features a 1400W (12A) motor delivering 13,800 RPM for fast, clean cutting of ceramic, tile, granite, marble, and masonry. Its adjustable base supports 0°–45° bevel cuts and up to 39mm straight depth, with locking settings for precise tile joints, trimming, and edge finishing. It accepts 110mm and 125mm blades. Powered by 220–240V, 50–60Hz, it maintains constant output under heavy loads without voltage drop. A line-side GFCI plug instantly cuts power if water contact or overload occurs, ensuring job-site safety. The heavy-duty body, optimized ventilation, and ergonomic grip provide durability, heat dissipation, and comfort during long operations. Designed for professional tile installers and construction use, it improves efficiency and reduces hand fatigue.

Product Specification:

Product Name:	Portable stone cutting saw
Model:	KY-S1-4012
Rated Input Power:	1400W
No-load Speed:	13800r/min
Rated Voltage:	220-240V
Rated Frequency:	50-60Hz
Blade Diameter:	110/125mm
Max Cutting Capacity (Width):	39mm
Net Weight:	3kgs
Package:	box package; 4pcs/ctn
Carton size:	46x25x38cm; 16/15kg

Product Details:

Powerful 12A Motor & Compact Design:

Equipped with a high-torque 12-amp (1400W) motor delivering speeds up to 13,800 RPM. It enables smooth, rapid cutting of ceramic, porcelain tile, granite, marble, and masonry materials.

Precision Beveling & Depth Adjustment:

the portable stone cutting saw is features an adjustable baseplate supporting 0° to 45° bevel cuts and a maximum straight-cut depth of 39mm. Robust locking mechanisms ensure stable angle and depth settings, facilitating precise tile joints, trimming, and edge finishing.

GFCI Safety Protection & Quick Setup:

Includes an in-line GFCI (Ground Fault Circuit Interrupter) plug that instantly cuts power upon contact with water or circuit overload, ensuring job-site safety. The rugged body structure enhances wear resistance and load-bearing capacity, while an optimized internal ventilation design ensures effective heat dissipation.

About our company:

The company offers one-stop electric tool purchasing services to buyers. Our advantages include direct factory manufacturing which provides lower prices. We support OEM/ODM customization, brand identification, packaging and specification design. Strict quality inspection and certification ensure stable product quality. Flexible minimum order quantities, rapid sample production and timely delivery reduce procurement risks. With stable delivery schedules, prompt after-sales service and long-term cooperation, you will obtain cost-effective, comprehensive and profitable tool products.

FAQ:

1: Can it cut reinforced concrete?

A: It can cut masonry materials; however, since reinforced concrete contains steel rebar, a specialized diamond blade and cautious operation are required. The 39mm cutting depth may be a limiting factor, so indiscriminate cutting is not recommended.

2: What is the fundamental difference between this and a circular saw for woodworking?

A: Woodworking circular saws are designed primarily for wood, operate at speeds of a few thousand RPM, and use toothed blades. This machine operates at 13,800 RPM, uses diamond blades, and is designed specifically for cutting hard, brittle materials like tile and stone.

3: Can this stone saw cut wood?

A: It is not recommended. Diamond blades are not designed for wood; high-speed cutting can cause scorching, smoke, poor chip clearance, and even kickback, posing safety risks.

4: Are the blades for stone saws and woodworking circular saws interchangeable?

A: It is not recommended. Differences in spindle bore diameter, maximum RPM ratings, safety guards, and cutting mechanisms mean that forced interchangeability could lead to blade failure or shattering.

5: How should this fit into a product lineup?

A: Woodworking circular saws target carpentry and renovation woodwork, whereas this machine targets masonry, tiling, and stone installation. They complement rather than replace each other, making them ideal for a professional renovation tool lineup.

6: Which users and applications is it suitable for?

A: Suitable for tilers, masons, stone installers, renovation contractors, and construction sites; used for cutting and trimming ceramics, tiles, granite, marble, and masonry.
