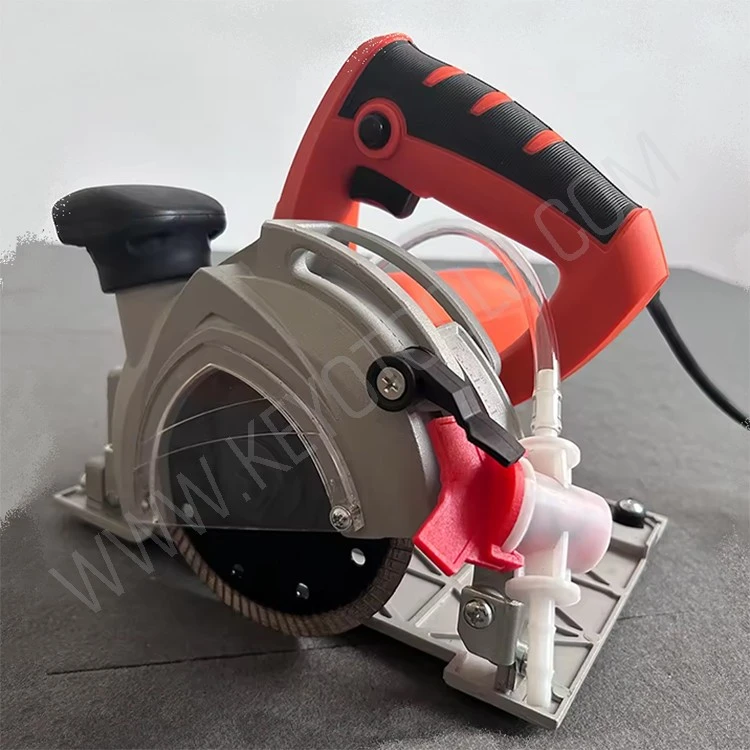

Marble Stone Cutting Saw With Guide Rail

Item Name:	Marble Stone Cutting Saw with Guide Rail
Model:	KY-S1-4025
Rated Input Power:	1400W
No load Speed:	13800r/min
Rated Voltage:	220-240V
Rated Frquency:	50-60hz
Hole Diameter of Disc:	30mm
Net Weight:	3.6kgs
Qty:	1pcs/ctn
G.W./N.W.	10.2/9kg
CBM:	55x26x26cm

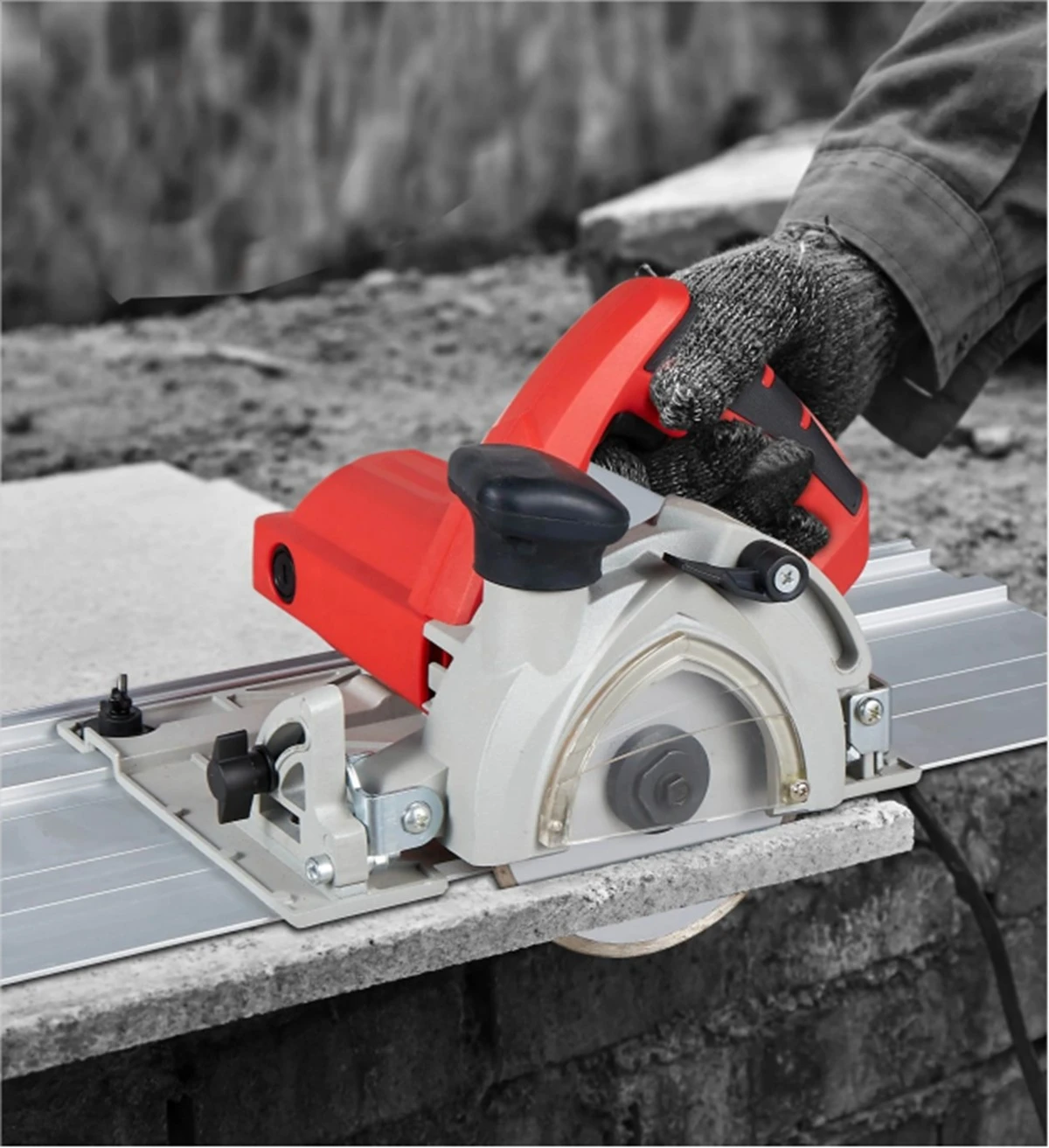

The KEYO electric tile cutter can achieve a maximum cutting length of 2000 millimeters. The guide rail and track matching system ensures the cutting geometric accuracy. The powerful motor can easily process various hard materials. The equipment is equipped with an exhaust system, and during dry cutting operations, it can directly connect to a vacuum cleaner with a 30mm diameter. Different from ordinary marble cutting machines, this machine is equipped with a guide rail. It is an ideal professional tool for tile workers, construction teams, and processing workshops to cut large-sized ceramic tiles and natural stones. It can also be used by ceiling installers and construction workers for precise cutting of gypsum boards and composite panels on ventilation exterior walls.

Marble Stone Cutting Saw with Guide Rail can be adjusted for height and tilted from 0° to 45° tilting. Cutting depth depends on the diameter of the cutting disc, and the maximum diameter of applicable cutting discs is 130 mm:

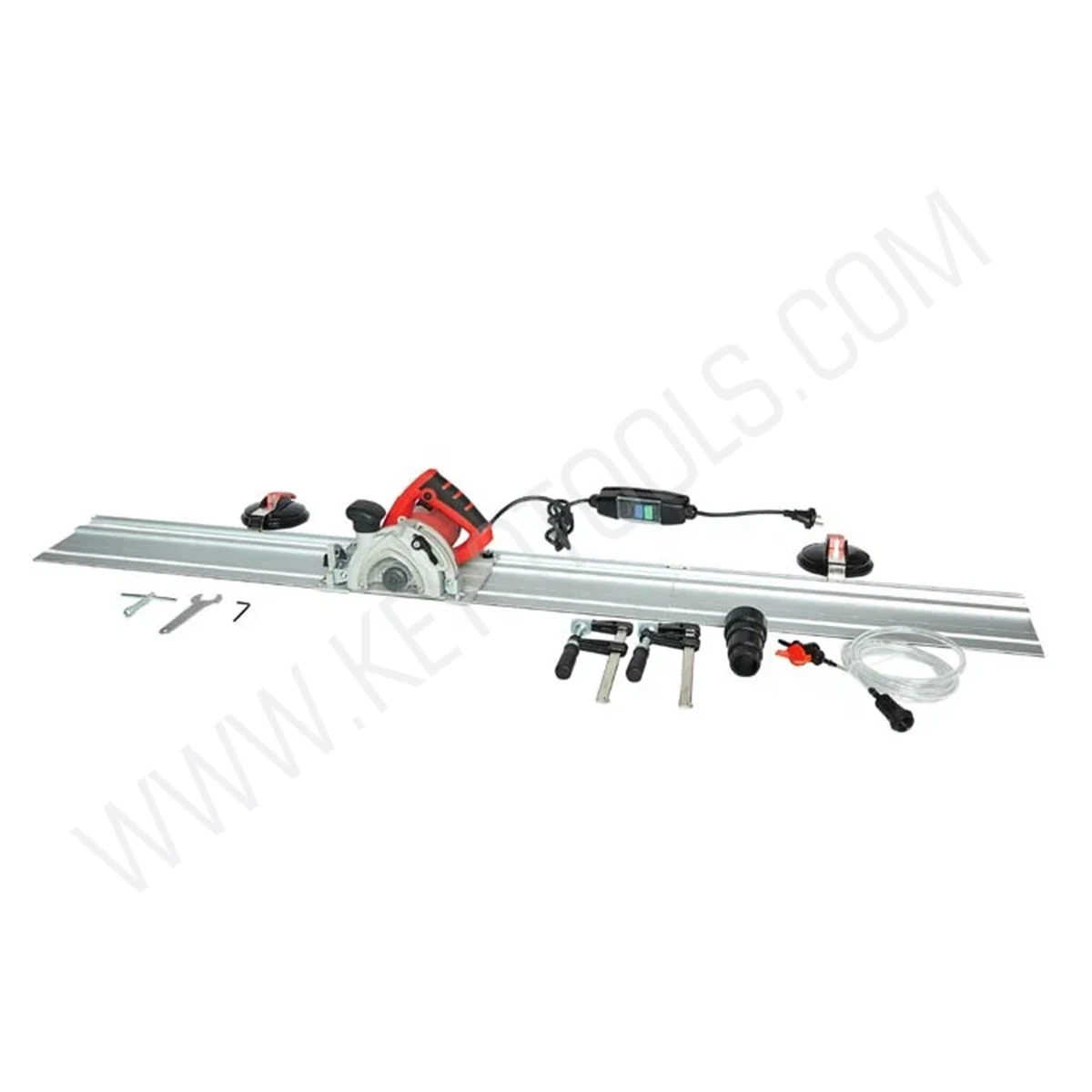

- Equipped with a guiding system for precise straight cuts.

- Maximum cutting length reaches 2000 mm.

- The cutting head allows height adjustment and 0° to 45° tilting, with quick and simple adjustment.

- Accepts cutting discs with a maximum diameter of 130 mm.

- Suitable for cutting various ceramic tiles, porcelain quartz slabs, natural and artificial stone, plasterboard and other materials.

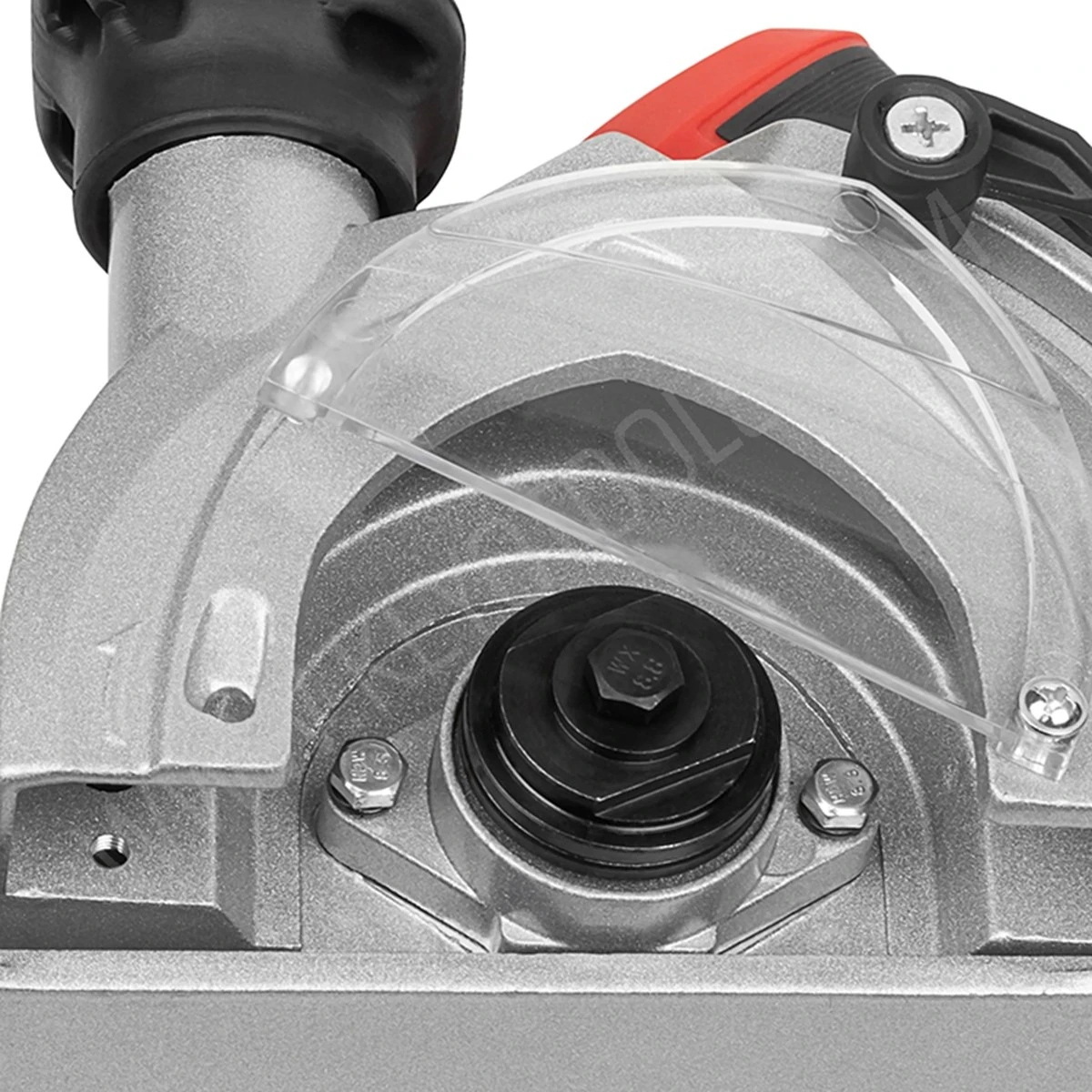

It supports both dry and wet cutting modes, equipped with a built-in water supply system and dual dust extraction structure. The saw blade guard is made of aluminum with a transparent polycarbonate cover and quick-lock mechanism. Optimized for ergonomics, it comes with a bi-material auxiliary handle for comfortable bevel work. It has a lock-off switch to prevent accidental startup, and the power cord is fitted with an RCD residual current protection switch. The complete kit includes cutting blades, suction cups and all necessary accessories.

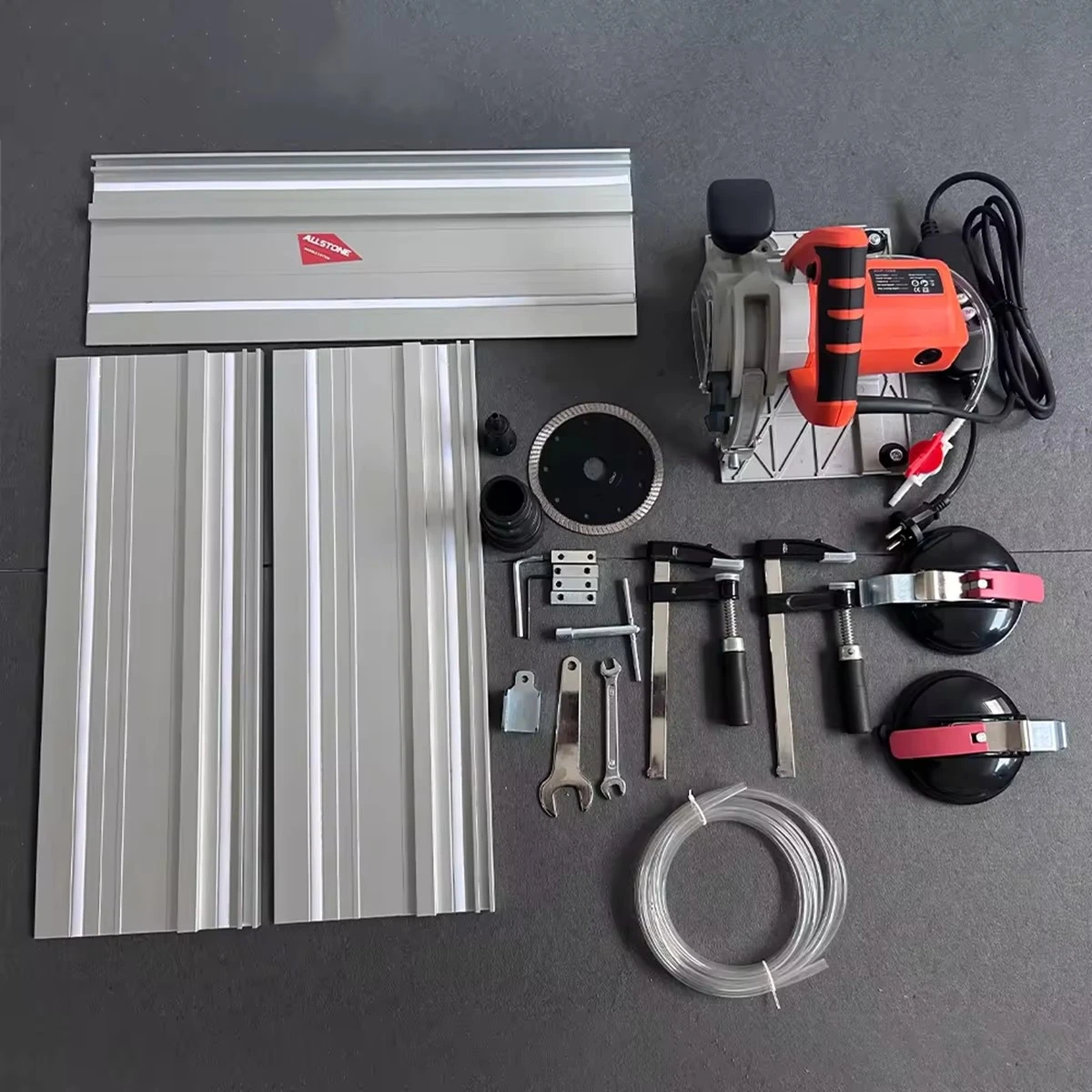

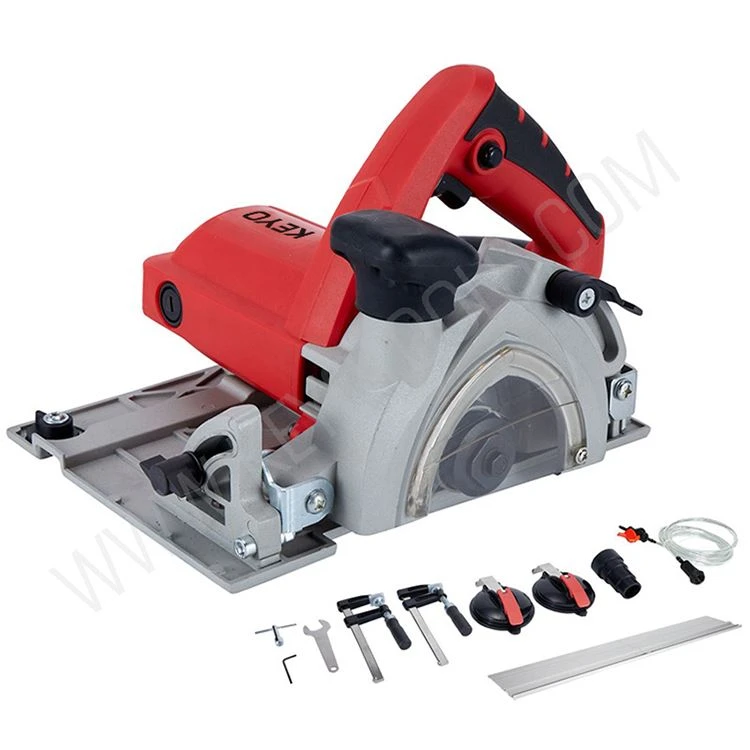

Accessories:

- Diamond cutting disc

- 50 cm aluminum guide rail - 3 pcs

- Quick clamps - 2 pcs

- Rail vacuum holders - 2 pcs

- Vacuum cleaner adapter (with screws)

- Hose with water tap

- Hexagon wrench

- Offset hexagon wrench

- Bench vice

- 35 mm fasteners

- Rail connectors - 4 pcs

- Reducing ring for cutting disc, size 22.2×20 mm

- Storage bag

- Instruction manual
