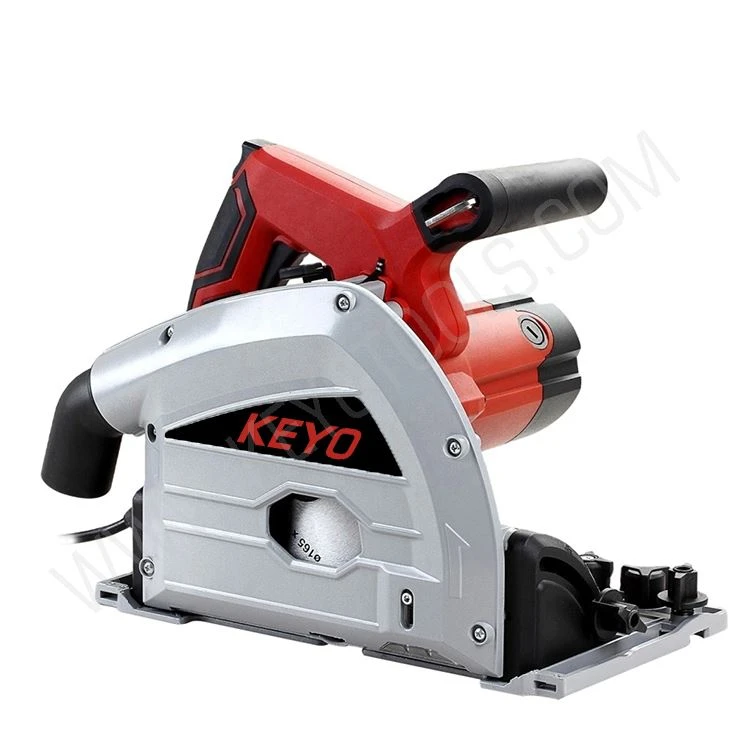

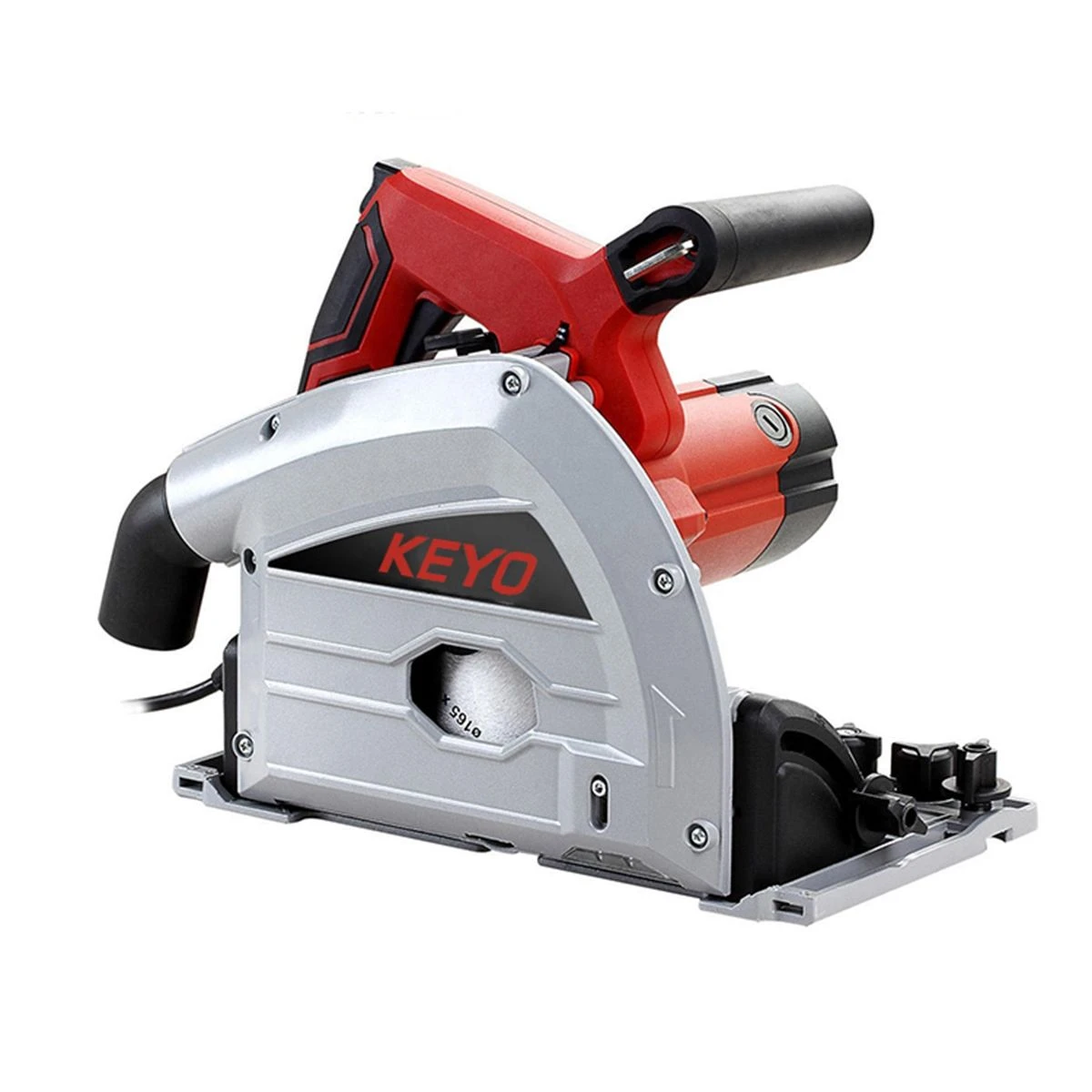

Product Specification
|
Item Name: |
cutting woodworking track saw |
|
Model: |
KY-S1-4026 |
|
Rated Power: |
1400W |
|
Voltage/Frequency: |
220-240V (50-60hz) |
|
No Load Speed: |
5000 RPM |
|
Saw Blade Diameter: |
165mm |
|
Tool Style: |
Corded-feature |
|
Cutting Capacity: |
59mm |
|
Saw blade: |
165mm, 24T/48T optional |
|
Diameter of bore: |
20mm |
|
Cutting Degree: |
1-48° |
|
Cutting depth with track: |
90°-54mm, 45°-38mm |
Product Application
This cutting woodworking track saw is a highly cost-effective product in the KEYO series. It is a very popular track saw in South America and Africa, with a quarterly export volume of over 100,000 pieces! It offers high-profit options for both electric tool wholesalers and buyers, as well as woodworking tool wholesalers and buyers.

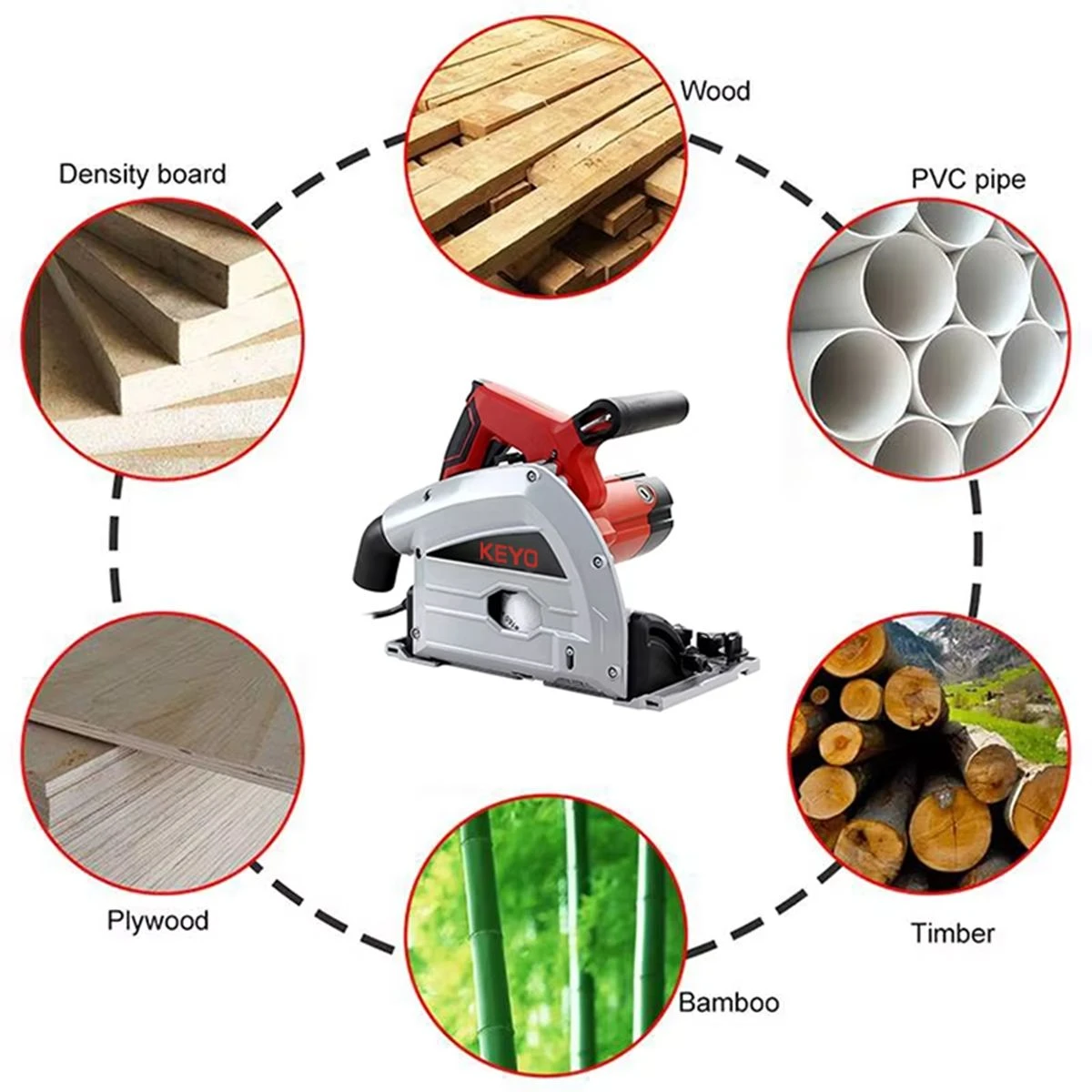

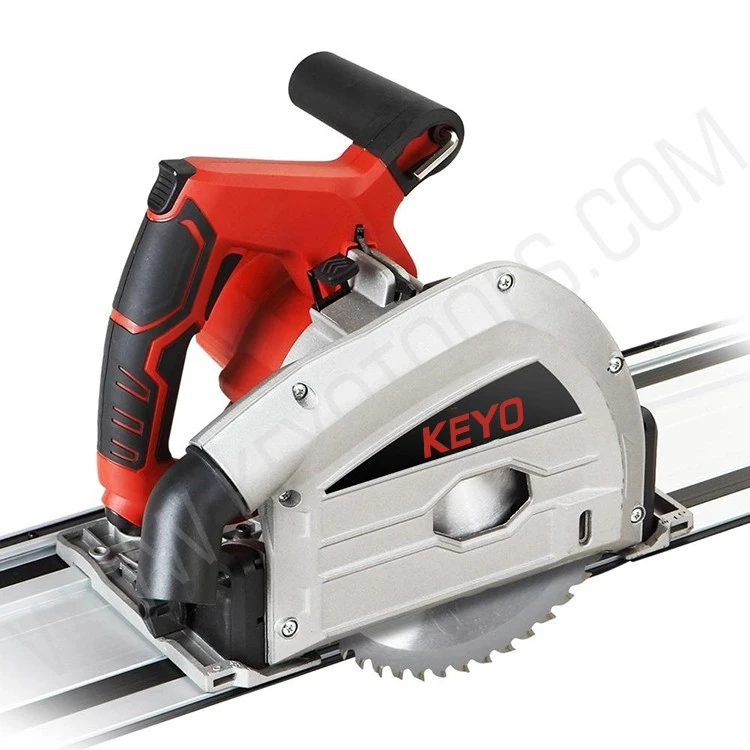

The track-mounted cutting machine is compact in size and easy to carry, and can provide the same cutting effect as a table saw or panel saw. Just lay the track along the desired surface and you can achieve clean and precise cutting. The track-mounted cutting machine is ideal for cutting plywood, trimming door panels, making furniture, and any other applications that require long-distance and precise cutting. Additionally, the blade can also be used independently as a plunge saw, and its flat base provides maximum stability and accuracy. The rear-mounted dust collection port can be connected to your preferred dust collection system to control sawdust and reduce cleaning work. Just connect the dust collection device of your choice and start cutting. We also offer cost-effective dust collection devices for you!
Product Details

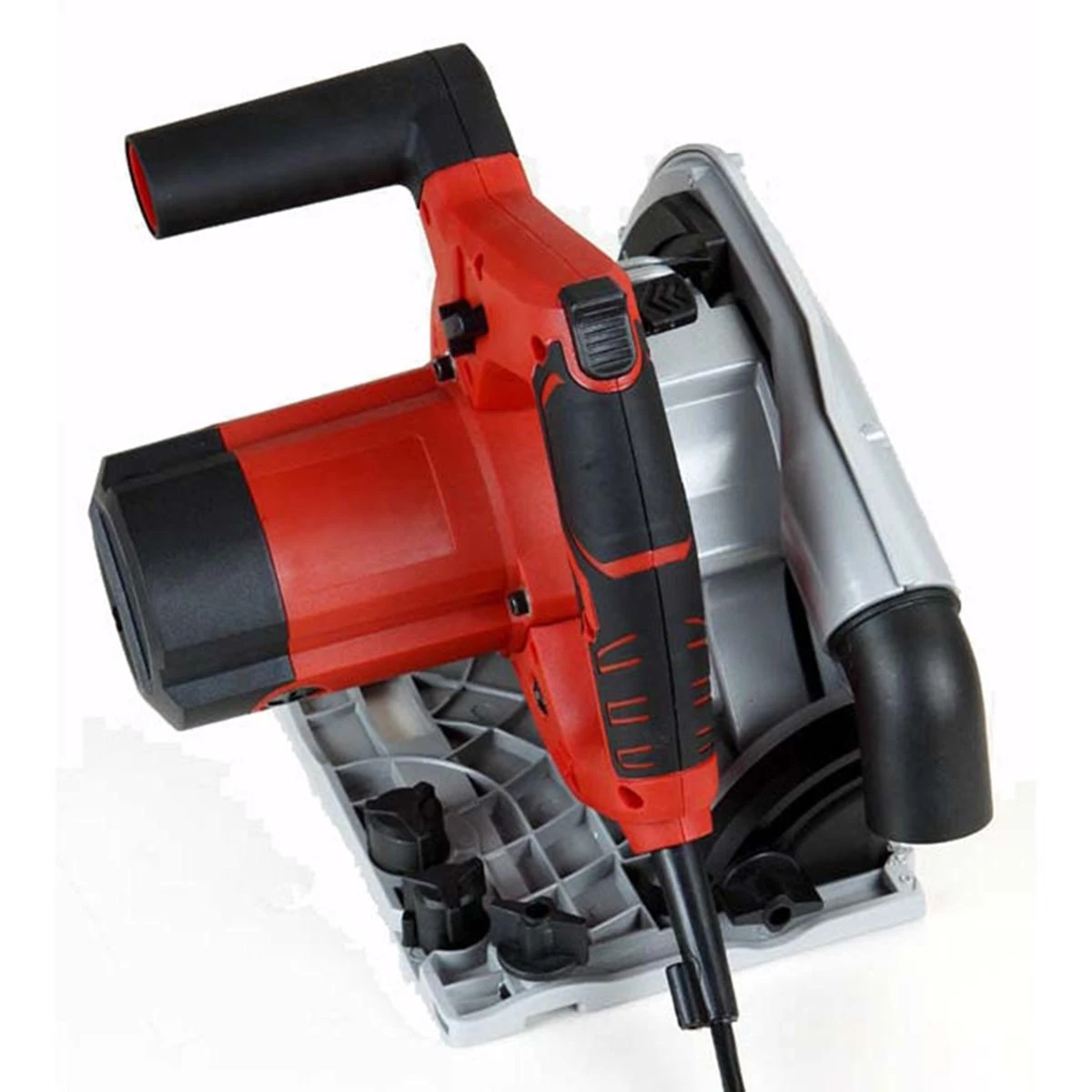

Powerful 1400W motor and efficient dust extraction system: delivers stable consistent power for heavy-duty wood cutting tasks; The cutting woodworking saw is equipped with variable speed from 2000 to 5000rpm and soft start function to reduce startup kickback and adapt to different cutting materials. Built-in 36mm inner diameter / 39mm outer diameter dust port compatible with standard shop vacuums to collect sawdust and keep your workspace clean.

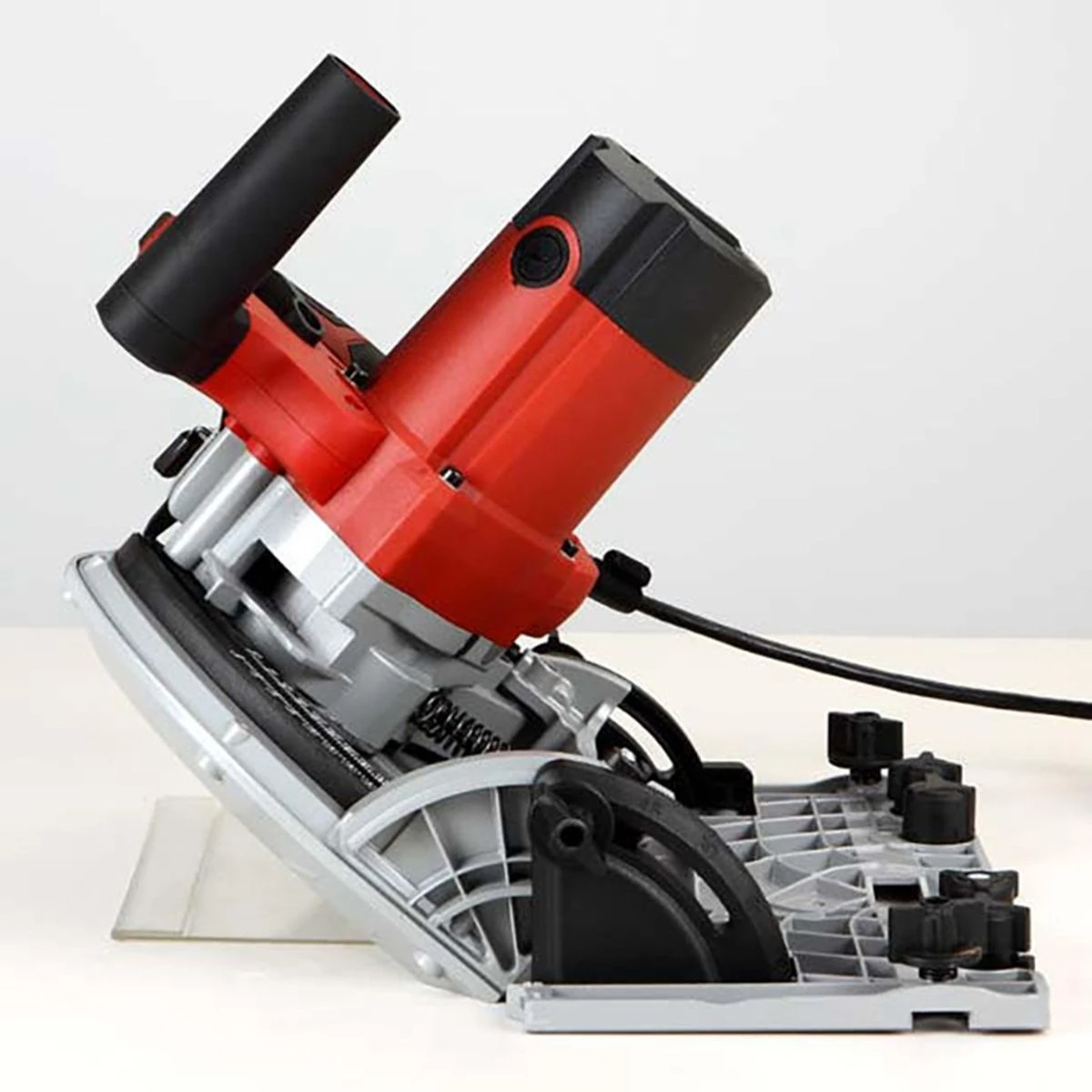

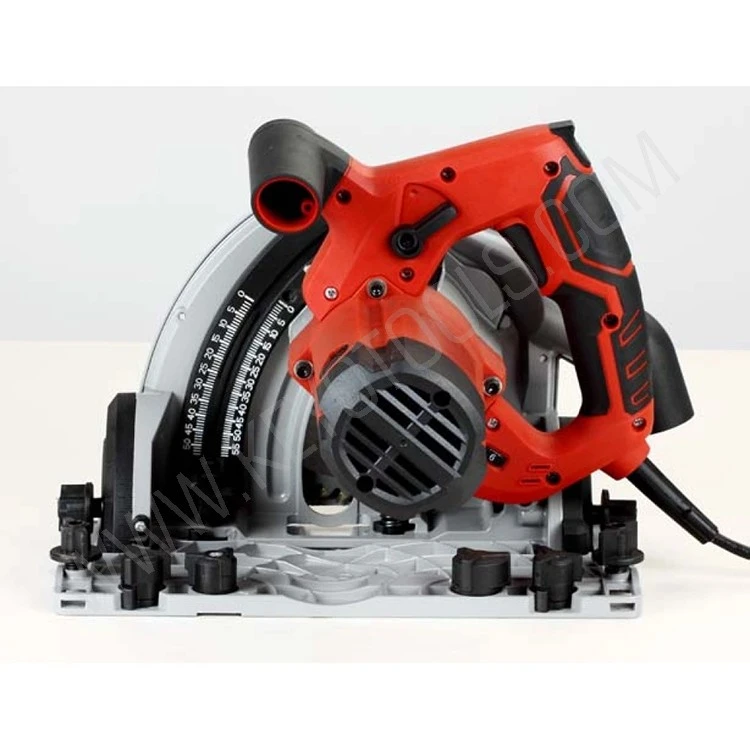

Precise adjustable cutting depth & bevel angle: supports 1° to 48° bevel cutting; max cutting depth reaches 54mm at 90° and 38mm at 45° with guide track, 59mm at 90° and 42mm at 45° without track for flexible straight and bevel cuts.
User-friendly convenient design: transparent inspection window lets you monitor scoring line and blade position in real time; spindle lock enables quick blade replacement without removing the cover; smooth plunge cutting allows direct cut on workpiece without pre-drilling when paired with guide rail.
Accessories:
- Track saw rail: 0.7m, 1m, 1.2m can customize.
- Rail Connector: Connect multiple rails with included rail connectors to lengthen your cutting span for large sheet materials
- Quick Release F Clamp/G clamps: secure the guide rail firmly to your workpiece, keeping the rail stable during operation. This ensures the plunge saw runs smoothly for perfectly straight cuts and improves overall cutting accuracy.
