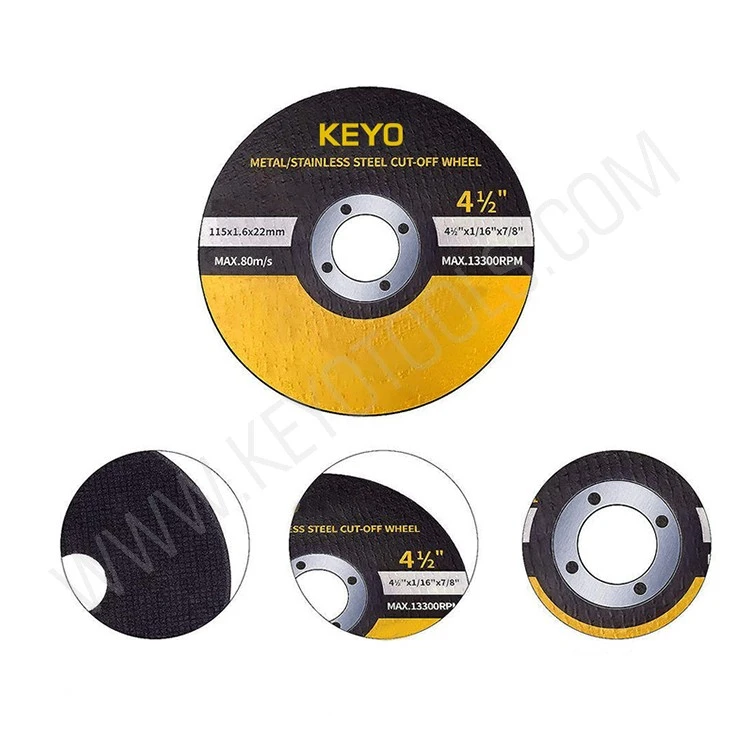

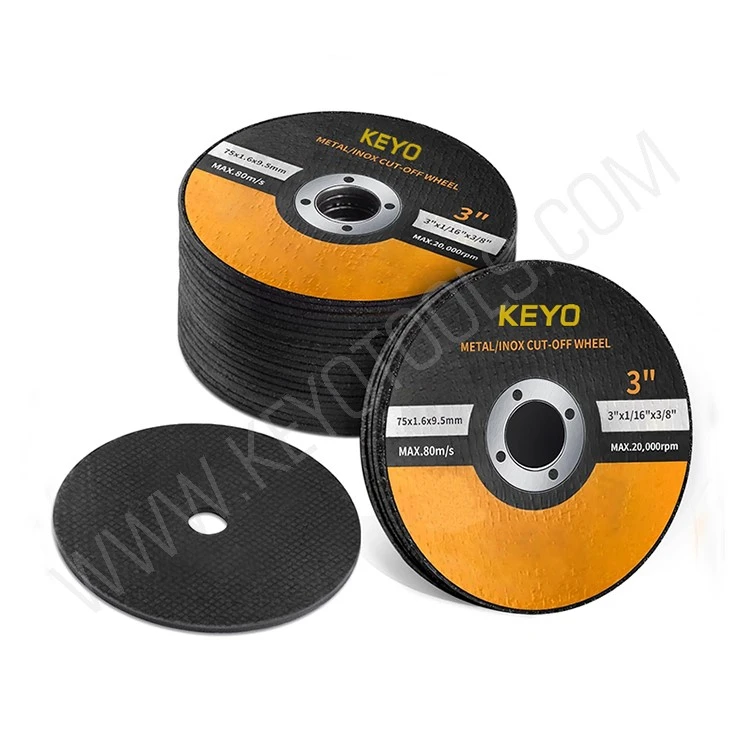

115mm 125mm Cut Off Wheel for Angle Grinder

The selection process of the Cut Off Wheel for Angle Grinder relies on evaluating four key dimensions: specifications, material composition, performance metrics, and safety compatibility. These factors collectively determine cutting efficiency, quality, service life, and operational safety.

1. Specifications: The foundation of your choice; must match the angle grinder.

Diameter: Must not exceed the maximum size allowed by the angle grinder's safety guard.

Common sizes include 100mm, 115mm, and 125mm (for compact tools) and 180mm and 230mm (for high-power industrial cutting).

Thickness: Determines cutting speed, precision, and service life.

• 0.8mm-1.9mm:

Fastest cutting speed, narrow kerf (cut width), minimal burrs and heat generation; ideal for thin-walled materials or high-precision applications.

• 2.5mm-3.2mm:

Offers better stability and control; suitable for standard metal sheets and pipes.

• Above 4mm:

Highest strength and breakage resistance; suitable for thick materials or heavy-duty industrial cutting.

Bore Diameter (Arbor Size): Must match the angle grinder's spindle diameter exactly.

Common sizes include 16mm, 22.23mm, etc.

2. Materials and Structure: Determine cutting capability and suitable applications.

• Abrasive Grain Type:

Aluminum Oxide (A): The most versatile abrasive; suitable for cutting ferrous metals like carbon steel and stainless steel; offers excellent cost-effectiveness.

Zirconia Alumina (Z): Tougher and more durable than aluminum oxide; ideal for heavy-duty cutting of stainless steel and alloy steel; offers a longer service life.

Silicon Carbide (C): Extremely hard and sharp; primarily used for cutting non-ferrous metals (e.g., aluminum, brass) and hard, brittle non-metallic materials (e.g., concrete, stone).

• Bond Type:

Resin Bond: The market standard. Offers good elasticity, high strength, excellent heat resistance, and great versatility; the standard choice for metalworking.

Metal Bond: Primarily used for super-hard abrasive discs (e.g., diamond or CBN/Cubic Boron Nitride); offers exceptional wear resistance; used for cutting extremely hard materials like cemented carbide and ceramics.

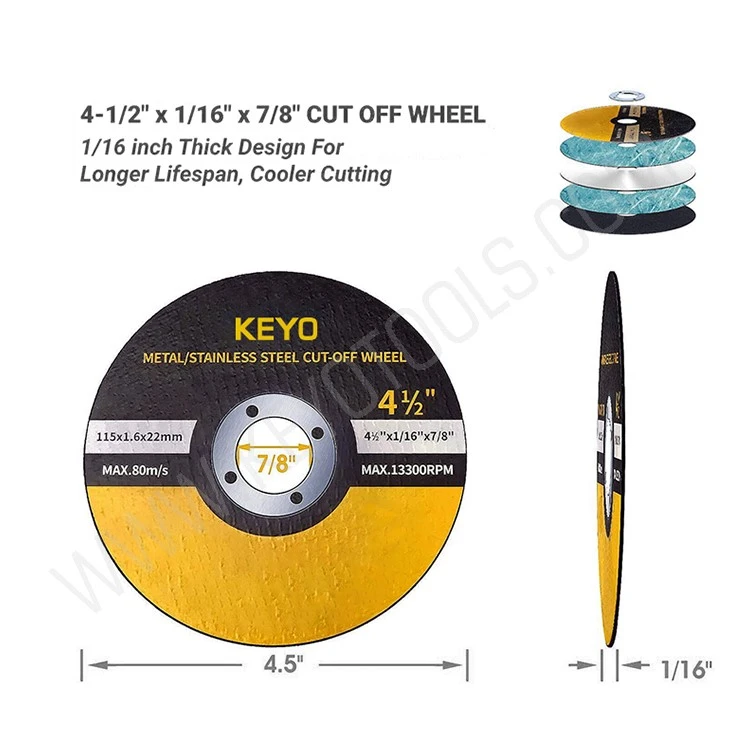

• Reinforced Structure:

High-quality cutting discs contain multiple layers of fiberglass mesh for reinforcement. This is crucial for withstanding the centrifugal forces of high-speed rotation and lateral pressure, effectively preventing disc breakage and ensuring safety.

3.Safety Specifications: Always select a disc based on your angle grinder's performance parameters; this is a matter of personal safety.

• Maximum Operating Speed (RPM):

The disc's rating must be greater than or equal to your angle grinder's no-load speed. Operating above the rated speed is strictly prohibited, as it may cause the disc to shatter.

• Safety Standards:

Choose discs that comply with safety standards such as ANSI B7.1 or EN12413; these standards impose strict requirements regarding disc strength and speed testing.

• Material-Specific Use:

Always use a disc designed for the specific material you are cutting-such as stainless steel, ceramic, concrete, or others-to achieve optimal results.
