Product Application:

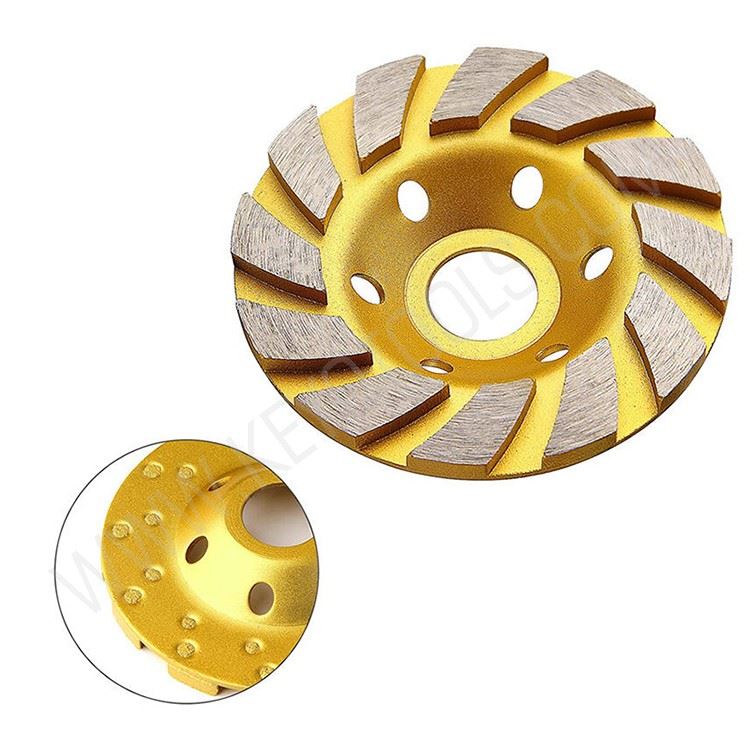

The diamond grinding segments feature high-quality diamond particles combined with a metal bond, manufactured using high-temperature sintering and high-frequency welding processes. The core body is treated with an anti-rust coating, and the high-frequency welding ensures a secure, reliable bond that prevents segment detachment during high-speed operation, thereby guaranteeing safety; the product is specifically designed for grinding various hard construction materials.

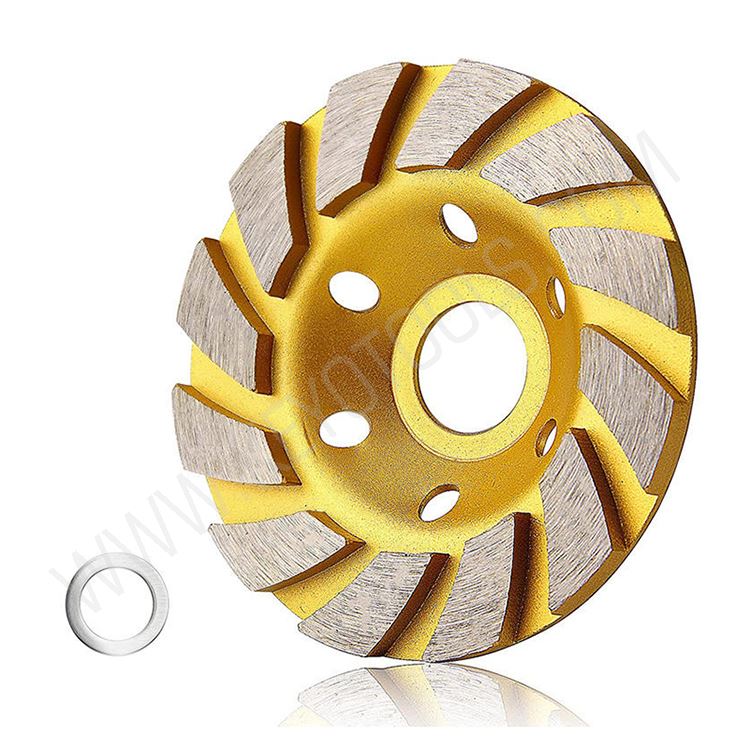

The segments utilize an angled turbo-style layout; this configuration reduces grinding resistance and ensures sharp cutting performance while effectively preventing the tool from bouncing or skipping during use. The product comes standard with a silver reducing washer, allowing it to fit various spindle specifications-such as adapting a 22.23mm bore to 16mm or M14 spindles-which significantly enhances compatibility with a wide range of angle grinders.
When purchase diamond grinding cup wheel purchasing , consider the following specifications:
Diameter:
100mm, 115mm, 125mm, 180mm, etc. Must match the size of your angle grinder.
Arbor Size:
22.23mm (standard), M14, 16mm. Check if a reducing ring is included.
Thickness:
Segment thickness (e.g., 5mm, 7mm); this determines the disc's service life.

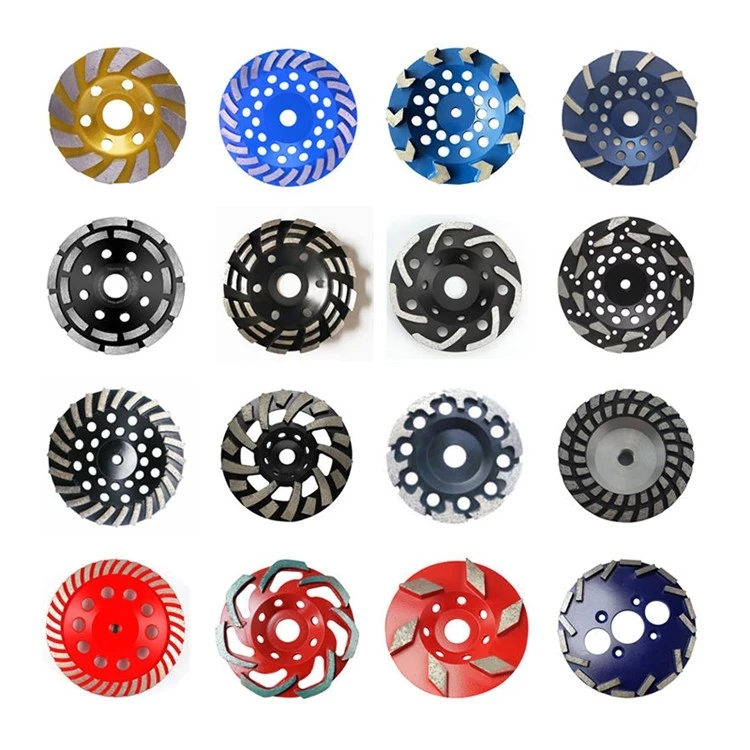

Segment Type and Shape (determines grinding performance):
Segmented: Good heat dissipation, strong cutting power; suitable for rough grinding and leveling; Turbo/Continuous: Suitable for fine grinding; produces a smoother finish.
Single/Double Row:
Double-row discs offer longer service life and more stable grinding but come at a higher price.
Diamond Grit (Mesh Size):
Coarse grinding (30/40#) vs. fine grinding (100/120#).
Maximum Speed and Safety Parameters (Crucial):
Max RPM: Diamond grinding discs have strict safety speed limits. Ensure the disc you buy is compatible with your angle grinder.

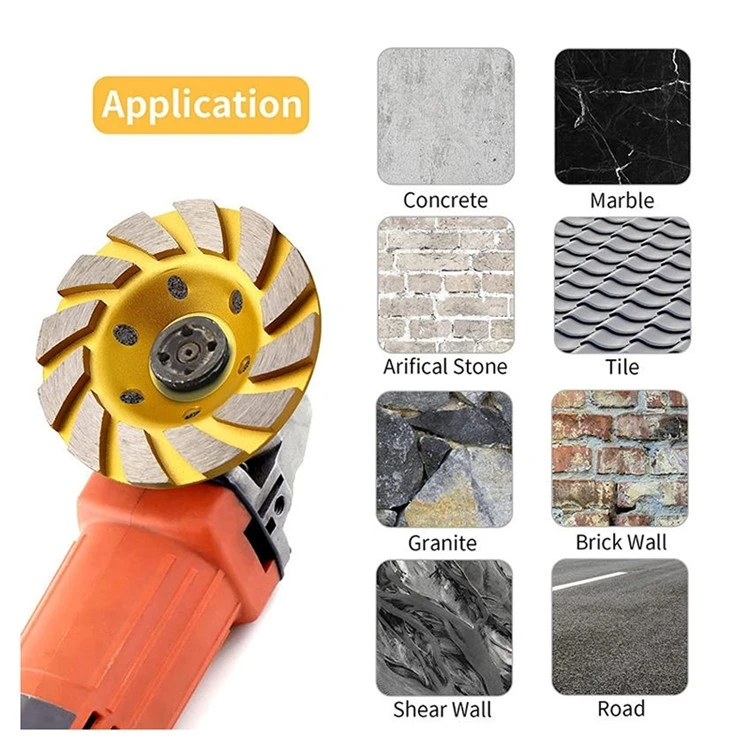

Applicable Materials and Tasks:
- Materials: Concrete, marble, engineered stone, tile, granite, brickwork.
- Tasks: Concrete surface leveling, removing epoxy/paint coatings, grinding stone edges, removing tile adhesive, grinding road markings, etc. Discs for concrete are usually coarser, while those for stone may require a finer finish.
Dry/Wet Use:
Some models of diamond grinding cup wheel support both dry and wet grinding. Wet grinding reduces dust and extends service life but requires an angle grinder and water feed accessories that support this function.
