Product Specification

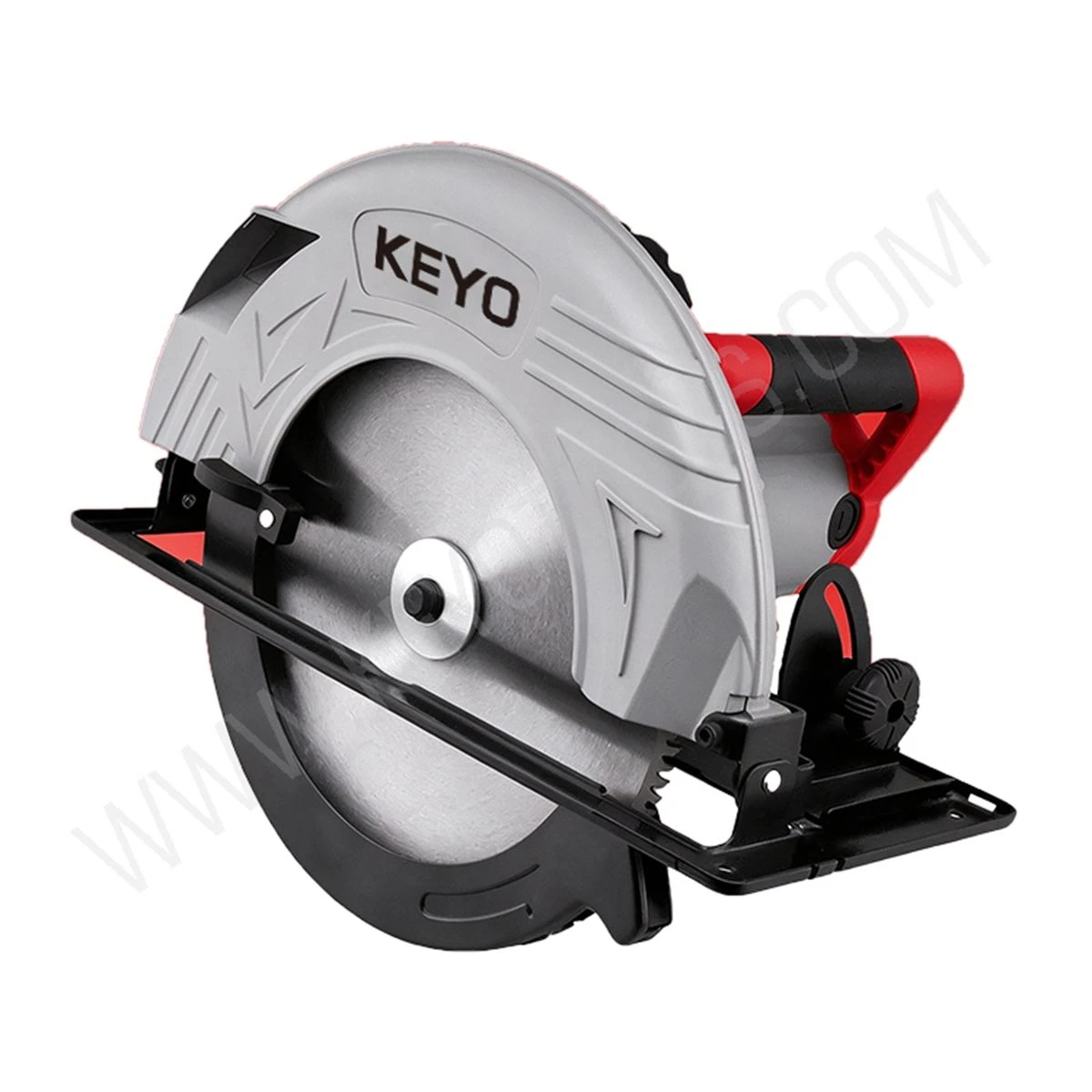

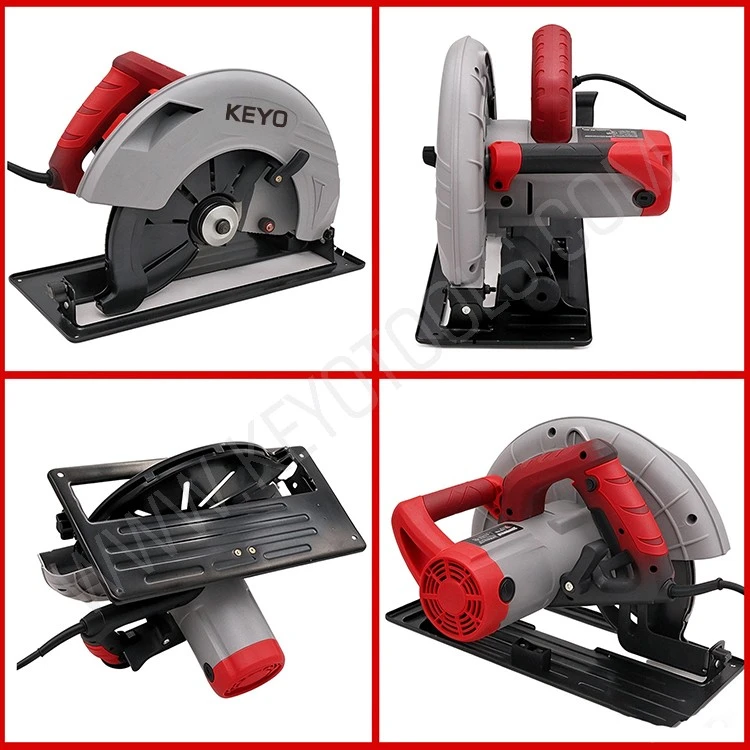

Item Name:	2800w 305mm disc building wood cutting saw
Model Number:	KY-S1-4019
Voltage/Frequency	220~240V/50Hz-60Hz
Rated input power	2800W
Blade diameter	305mm
No load speed	3300r/min
Max. Cutting capacity	45 degree 98mm / 90 degree 110mm
Accessories	carbon brush 1set; socket wrench 1pc; bolt 4pcs
Warranty	1 Year
Package Size /CTN	51x35x58.5cm /2PCS per CTN (color box + foam)
G.W.	10.8KGS

Product Description

With its large-diameter saw blade and a powerful 2800-watt motor, this 2800w 305mm disc building wood cutting saw can effortlessly cut through workpieces up to 110 mm thick! The tool can also be easily converted into a table saw by securing its base to a piece of plywood using the specialized self-tapping screws included in the kit. This saw is particularly well-suited for timber-frame construction and other tasks requiring the cutting of large-cross-section materials. By completing the cut in a single pass, it significantly saves time and enhances cutting precision. When used in accordance with safety protocols and equipped with a metal-cutting blade, it can even be used to cut sandwich panels. Offering faster cutting speeds and ensuring perfectly square, flush edges, this tool holds a distinct advantage over angle grinders and other conventional equipment used for cutting sandwich panels. Note: For safety reasons, this model is not designed to support a parallel guide (rip fence). To ensure straight cuts, the tool must be guided along a straight rail.

Product Details:

1. Powerful 2800-Watt Motor

This 2800w 305mm disc building wood cutting saw is equipped with a copper-wound motor and an efficient cooling system, it ensures stable performance under heavy loads and long-lasting durability.

2. Exceptional Cutting Depth

With a maximum cutting depth of 110 mm at 90 degree, it can cut through 100×100 mm timber in a single pass, without the need to flip the workpiece. It also supports 45 degree bevel cuts, with a maximum cutting depth of 98 mm.

3. Compatibility with Professional Saw Blades

The 30 mm arbor (mounting hole) accommodates a wide range of standard saw blades.

4. Overload and Overheat Protection

The system automatically shuts down the tool if it is subjected to excessive loads or if the motor overheats, helping to extend the tool's service life.

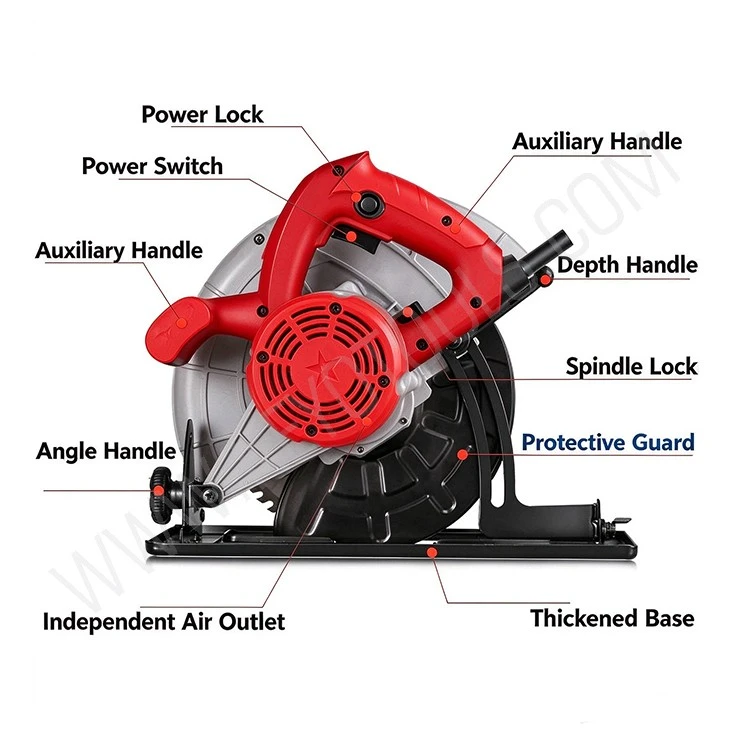

5. Spindle Lock and Safe Operation

A spindle lock simplifies maintenance and blade changes. The power switch features a safety lock to enhance operational security.

6. Ergonomic Dual-Grip Design

The tool body features a rubber-padded design, ensuring a secure grip and effective reduction of hand vibration and fatigue during prolonged use.

7. Robust Cast-Aluminum Base

Ensures stable operation and cutting precision. Equipped with convenient adjustments for cutting depth and angle.

8. Maintenance Accessory Kit

Includes a set of replacement carbon brushes, a wrench, and four ST6×25 fastening screws.

Important Note: The saw blade is not included in the package.

Why Choose Us

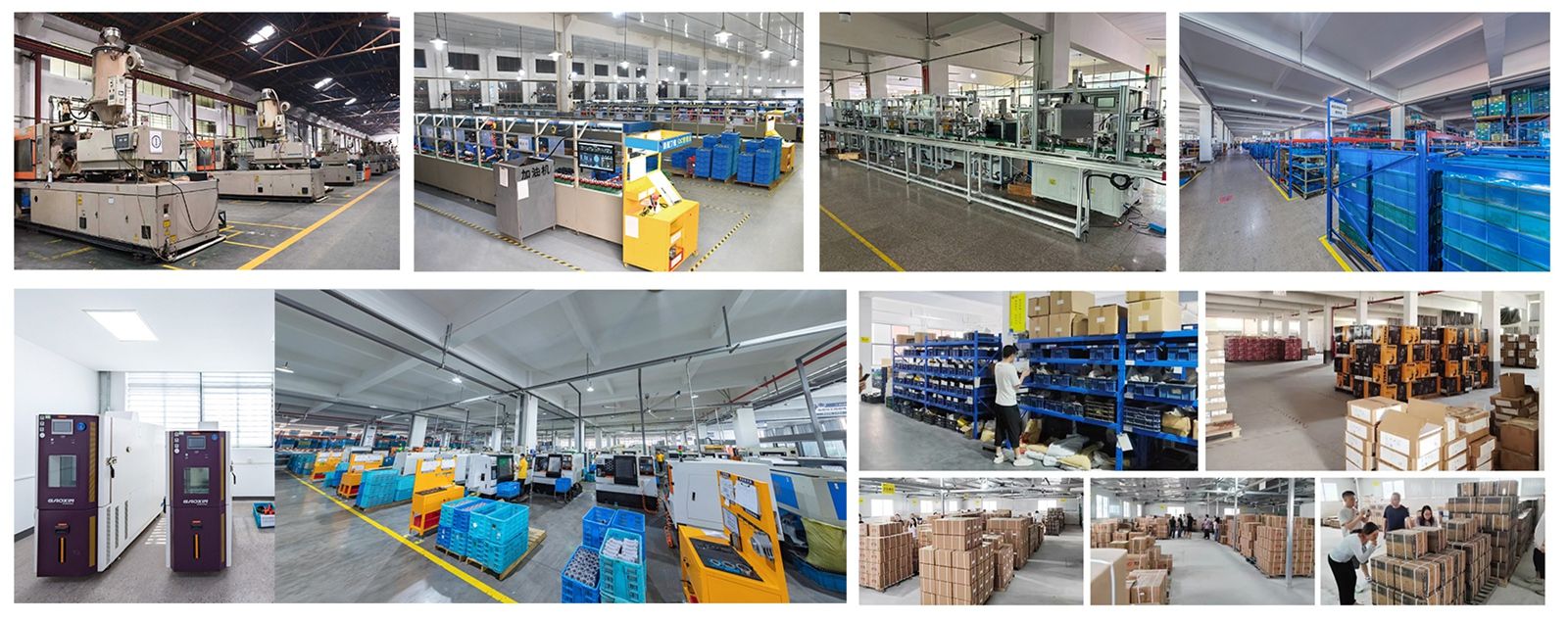

CHONGQING JINSWELL TECH CO., LTD., provide a one-stop procurement solution for power tools, offering factory-direct pricing that ensures healthy profit margins for distributors and wholesalers. We offer comprehensive OEM/ODM customization-including product color schemes, accessory kits, packaging, and branding-to help clients build their own unique brands and enhance their global competitiveness. Our integrated in-house production lines cover everything from injection molding and assembly to final product testing, with a daily capacity of 2,000 cordless drill kits. Rigorous, multi-stage quality control ensures consistent performance, significantly reducing costs associated with after-sales returns and exchanges. Through long-standing partnerships with various freight forwarders, we provide flexible sea and land logistics solutions that lower overall shipping costs and simplify customs clearance. We exhibit at the Canton Fair twice a year; we invite global buyers to visit our booth to inspect samples in person and discuss long-term wholesale partnerships.

product-1600-635

product-1600-840

FAQ:

1. What about the MOQ?

This model MOQ is 500 sets

2. What certifications has obtained for overseas markets? Are test reports available for customs clearance?

A: This model has passed CE certification. We can supply complete certification documents and test reports for your customs clearance and local market access audit.

3: What is your warranty policy for bulk orders?

A: Our factory provides 12-month warranty for mass production units against manufacturing defects.

4: What parts are covered under the warranty? Which failures are not included?

A: Warranty covers defective motor, gearbox and internal electronic components. It excludes consumable parts such as saw blade, carbon brush, power cord, and damage from improper operation or overloading.

5: Who bears the freight cost for replacement spare parts under warranty?

A: For warranty spare parts, buyer covers the international freight cost of spare parts shipment. We bear the cost of spare parts itself.

6: What if the product is damaged during sea transportation?

A: Damage caused by rough transit is not covered by factory warranty. We suggest you purchase cargo insurance, and inspect goods promptly upon container arrival.
